Extruded Plastic netting

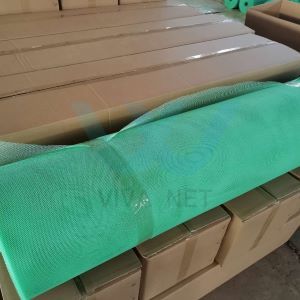

Product Name: Green infusion netting
Material: Virgin HDPE (High Density Polyethylene)
Color: Dark Green( Black / Transparent）Max working temperature: ≤120℃Mesh structure: Diamond extruded meshRoll Length: 50m / 100m per roll Custom length acceptable
Thickness: 0.2 mm ~ 0.9 mm

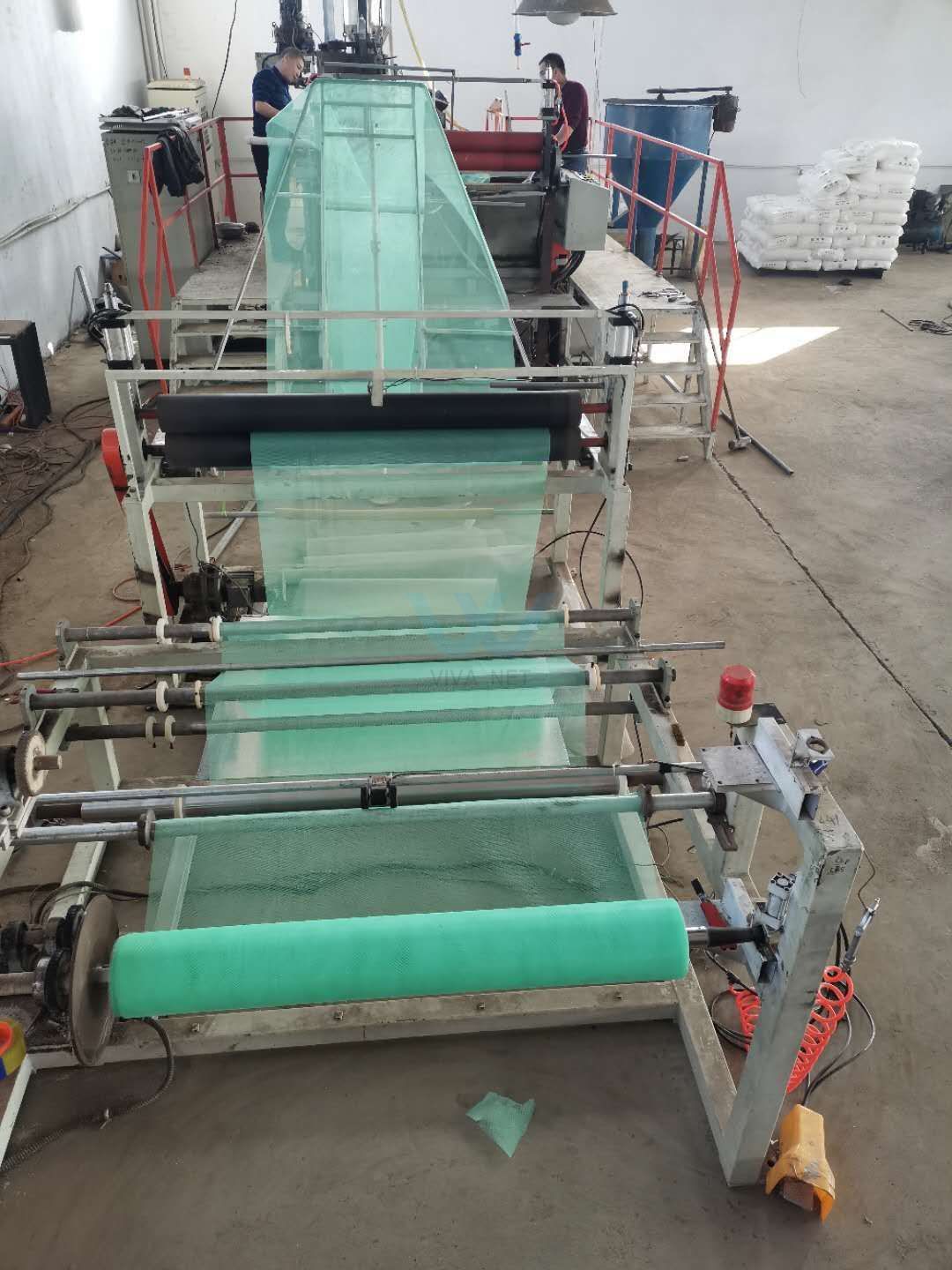

HEBEI VIVA NET CO LTD (VIVANET) is a premier industrial-tier factory manufacturing high-precision green vacuum infusion net (infusion mesh) and resin flow media for advanced composite material molding worldwide. Supplying top-tier wind energy, marine yachting, and aerospace sectors in Europe and North America, our green infusion mesh is produced via state-of-the-art plastic extrusion using 100% virgin high-density polyethylene (HDPE) or polypropylene (PP). It serves as an optimal, low-cost flow medium in vacuum bag processing, ensuring rapid, uniform, and complete resin distribution across large-scale fiberglass and carbon fiber composite structures.
This green infusion net features stable 3D mesh structure, excellent permeability, low resin residue, flexible and easy cutting. It works together with release film, peel ply, vacuum bag film for vacuum bagging system. Widely used in carbon fiber & fiberglass composite production including wind turbine blades, yacht hulls, auto parts, boat components and sporting goods. Disposable consumable for composite vacuum infusion molding.
Green Infusion Netting / Resin Flow Mesh, HDPE flow media for vacuum resin infusion. High resin flow rate, flexible, easy to cut. Ideal auxiliary material for fiberglass & carbon fiber composite vacuum bagging.
| Specifications of green infusion netting | |
| Product Name | Green Vacuum Infusion Net / Resin Flow Media |
| Manufacturing Process | High-Precision Plastic Extrusion |
| Materials | 100% Virgin HDPE (High Density Polyethylene) |
| Color | ark Green（ Black / Transparent） |
| Temperature Resistance | Up to 100°C - 120°C (Curing stable) |
| Mesh structure | Diamond/Square extruded mesh |
| Weight | 100 g/㎡，120 g/㎡，160 g/㎡，230 g/㎡ |
| Width | 1.0m / 1.2m / 1.6m / 2.0m；Max width up to 4m(Custom width available) |
| Length | 50m / 100m per roll Custom length acceptable |
| Thickness | 0.2 mm ~ 0.9 mm |
Features:
1) Constructed from virgin HDPE, stable structure under vacuum pressure
2) Continuous 3D flow channels for fast, uniform resin distribution
3) Low resin absorption, less resin waste after demolding
4) Flexible, easy to cut and conform to curved mold surfaces
5) Good heat resistance, compatible with polyester, epoxy and vinyl ester resin
6) Disposable composite vacuum infusion consumable
7) Consistent mesh permeability across the whole roll
8) Available in multiple weights, widths and custom sizes
1）Vacuum resin infusion, RTM molding
2）Carbon fiber composite parts
3）Fiberglass boat, yacht, marine components
4）Wind turbine blades
5）Automotive composite panels
6）Sports equipment composite production
| Specifications of green infusion netting | |
| Materials | Virgin HDPE (High Density Polyethylene) |
| Color | ark Green（ Black / Transparent） |
| Max working temperature: | ≤120℃ |
| Mesh structure | Diamond extruded mesh |
| Weight | 100 g/㎡，120 g/㎡，160 g/㎡，230 g/㎡ |
| Width | 1.0m / 1.2m / 1.6m / 2.0m；Max width up to 4m(Custom width available) |
| Length | 50m / 100m per roll Custom length acceptable |
| Thickness | 0.2 mm ~ 0.9 mm |
Q: How many could I purchase at least?
A: We are the plastic netting factory,not retail or trading company,so we don't have stocks,the mini order will be 2tons.Thanks
Q: What about the leading time?
A: About 25-30 working days, it depends on your quantities.
Q: How about the shipping method?
A: By Air, By Sea, by express
Q: What’s the payment method you support?
A: T/T, L/C, Western Union, Money Gram.
